Nickel Wire Mesh
Nickel Wire Mesh
Nickel Wire Mesh
Nickel Wire Mesh
Nickel Wire Mesh
Nickel Wire MeshNickel net, is mainly used in acid, alkali environment conditions screening and separation with gas, liquid filtration, and other media. We can supply other special material wire mesh products,such as: Nickel Wire Mesh (Ni-Cr),monel wire mesh,titanium wire mesh and so on.
Material: Nickel 200(N4), Nickel 201(N6), N2 N8 wire
Wire diameter: 0.01-2.03mm
Mesh Count:
Plain/twill:1-635 mesh
Dutch: 12x64 to 500x3500 mesh
Weave type: Plain/twill/dutch/ five huddle weave
Roll width: 0.5m 1m 1.22m 1.5m...
Roll length: 1-30m/roll
Features:
High electrical conductivity
Corrosion,acid, alkali, heat, wear resistance
Good conductivity and ductility
Applications
Usually used for the nickel current battery collector, Electronics, oil mining, chemical ,food ,and other areas.

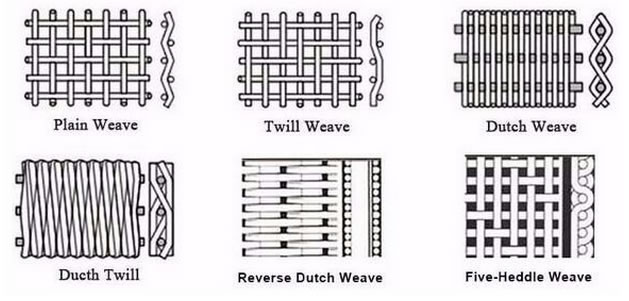

Weave type
Chemical Composition
| Grade | C% | Cu% | Fe% | Mn% | Ni% | S% | Si% | Co% | Cr% | Mg% | Ti% |
| Nickel 200 | 0.015 | 0.25 | 0.40 | 0.35 | 99.0 | 0.01 | 0.35 | - | - | - | - |
| Nickel 205 | 0.02 | 0.001 | 0.005 | 0.001 | 99.97 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
| Nickel 270 | 0.15 | 0.15 | 0.20 | 0.35 | 99.0 | 0.15 | 0.15 | - | 0.01- 0.05 | 0.01- 0.08 | - |
| Grade | Ni+Co | Cu | Si | Mn | C | Mg | S | Fe | Impurity Sum |
| Min | Max | ||||||||
| N2 | 99.98 | .001 | .003 | .002 | .005 | .003 | .001 | .007 | .02 |
| N4 | 99.9 | .015 | .03 | .002 | .01 | .01 | .001 | .04 | 1 |
| N6 | 99.5 | .06 | .10 | .05 | .10 | .10 | .005 | .10 | .5 |
| N8 | 99.0 | .15 | .15 | .20 | .20 | .10 | .015 | .30 | 1.0 |
